Zotero Translators

Translators are at the core of one of Zotero’s most popular features: its ability to import and export item metadata from and to a variety of formats. Below we describe how translators work, and how you can write your own.

This page describes the function and structure of translators. For in-depth documentation on how to write translator code, see Coding.

Note: Before writing a translator for a site, look at the documentation on exposing metadata; website authors should try embedding the necessary metadata before attempting to write a translator.

If you're looking for a broken translator to fix, see the recent translator errors and check on one of the top reported errors. You can also check the status of many translators by reviewing the translator test overview.

Translator Types - Web, Import, Export and Search

Zotero translators can operate in four different ways (note that translators are not necessarily restricted to a single type):

  • Web translators: can be activated when visiting a website. E.g. with Zotero for Firefox, an icon appears in Firefox's address bar when a translator finds item metadata on the loaded webpage. Clicking this icon will activate the translator, saving the item metadata into your Zotero library.
  • Import translators: can import item metadata from one of the standard storage formats, such as BibTeX or RIS, into your Zotero library. The data to be imported may be supplied as a file, through the operating system's clipboard, or it may be delivered through a web translator (in this case, the role of the web translator is typically restricted to retrieving the metadata, with the import translator doing the actual parsing).
  • Export translators: can export item metadata from items in your Zotero library to a file in one of the standard storage formats (like BibTeX or RIS).
  • Search translators: can look up and retrieve item metadata when supplied with a standard identifier, like a PubMed ID (PMID) or DOI.

Translator Structure

Zotero translators are stored as individual JavaScript files in the “translators” subdirectory of the Zotero data directory. Each translator contains a JSON metadata header, followed by the translator’s JavaScript code. This code must include certain top-level JavaScript functions, as determined by the translator type(s).

Metadata

An example of a JSON metadata header is shown below:

{
   "translatorID":"fcf41bed-0cbc-3704-85c7-8062a0068a7a",
   "translatorType":12,
   "label":"NCBI PubMed",
   "creator":"Simon Kornblith and Michael Berkowitz",
   "target":"http://[^/]*www\\.ncbi\\.nlm\\.nih\\.gov[^/]*/(pubmed|sites/entrez|entrez/query\\.fcgi\\?.*db=PubMed)",
   "minVersion":"1.0.0b3.r1",
   "maxVersion":"",
   "browserSupport":"gcs",
   "priority":100,
   "inRepository":true,
   "lastUpdated":"2008-12-15 00:25:00"
}

The roles of the different metadata fields are:

  • translatorID
    The unique internal ID by which Zotero identifies the translator. You must use a stable GUID, as the translatorID is used for automatic updating of translators, and for calling translators within other translators.
  • translatorType
    An integer specifying to which type(s) the translator belongs. The value is the sum of the values assigned to each type: import (1), export (2), web (4) and search (8). E.g. the value of translatorType is 2 for an export translator, and 12 for a web/search translator.
  • label
    The name of the translator.
  • creator
    The author(s) of the translator.
  • target
    • For web translators, the target should specify a JavaScript regular expression (note that escaping requires two backslashes: one for the regular expression itself, and one for the JSON, e.g. ”^http://(www\\.)?example.com/”). Whenever a webpage is loaded, Zotero tests the target regular expressions of all web translators on the webpage URL. If there is a translator with a matching target, this translator’s detectWeb function is run. If this function finds item metadata, the Zotero translator icon appears or becomes active in the browser. When multiple translators have a matching target, the translator with the lowest priority number is selected. Web translators with the target set to null (e.g. the DOI translator) match every webpage, but normally have a high priority number and are only used when no other translator matches.
    • For import translators, the target is set to the expected extension (e.g. the BibTeX import/export translator has its target set to “bib”; selecting BibTex in Zotero’s import window filters for files with a ”.bib” extension).
    • For export translators, the target is set to the extension that should be given to generated files (e.g. the BibTeX translator produces “filename.bib” files).
  • minVersion & maxVersion
    Respectively the minimum and maximum version of Zotero (as specified in Zotero’s Install Manifest) with which the translator is compatible.
  • browserSupport
    A string containing one or more of the letters g, c, s, i, representing the connectors that the translator can be run in – Gecko (Firefox), Chrome, Safari, Internet Explorer, respectively. b indicates support for the Bookmarklet (zotero-dev thread) and v indicates support for the translation-server. For more information, see Connectors. Warning: Compatible with Zotero 2.1.9 and later only.
  • priority
    An integer indicating translator priority. When multiple translators can translate a source, the translator with the lowest priority number is selected. Site-specific web translators normally have a priority of 100.
  • inRepository
    Set to true for translators that are added to the Zotero repo and distributed to all Zotero users, and false for those that are not.
  • lastUpdated
    The date and time when the translator was last modified (format “YYYY-MM-DD HH:MM:SS”). For the metadata to be read correctly, this line must be the last line in the JSON block.

Metadata Options

In addition to the required metadata fields described above, two optional fields exist, configOptions and displayOptions. Both are JavaScript objects, with several properties that control translator behavior:

  • configOptions
    • dataMode
      For import translators, this sets the form in which the input data is presented to the translator. If set to “rdf/xml”, Zotero will parse the input as XML and expose the data through the Zotero.RDF object. If “xml/e4x”, Zotero will expose the data through the function Zotero.getXML(). Zotero does not natively support importing N3 representations of RDF. The values “block” and “line” appear in some existing translators, but no longer necessary in Zotero 2.1 and later.
    • getCollections
      For export translators, set to true or false. If true, an export translator will have access to the collection names and can recreate them in the exported file.
  • displayOptions
    • exportCharset
      The default character set to use for export, defaults to “UTF-8”
    • exportFileData, exportNotes and exportTags
      For each property that is set, a checkbox (respectively “Export Files”, “Export Notes” and “Export Tags”) is added to Zotero's export window, allowing files, notes and/or tags to be exported. A checkbox is checked by default if the corresponding property is set to true, and unchecked if the property is set to false.

An example of how these properties are set (taken from the BibTeX.js translator):

"configOptions":{"dataMode":"block"},
"displayOptions":{"exportCharset":"UTF-8", "exportFileData":false}

Top-level Functions

Depending on the translator type, each Zotero translator must include certain top-level JavaScript functions:

    • detectWeb
      After a web translator has been selected based by its matching target and its priority ranking, detectWeb is run to determine whether item metadata can indeed be retrieved from the webpage. Should return the detected item type (e.g. “journalArticle”, see the overview of Zotero item types), or, if multiple items are found, “multiple”. If detectWeb does not return a value, the translator with the next-highest priority is selected, until all translators with a matching target have been exhausted.
    • doWeb
      Performs the actual item metadata retrieval.
    • detectImport
      Determines whether the translator can import item metadata. Should return true if it can, and false if it cannot.
    • doImport
      Performs the actual import.
    • doExport
      Performs the export.
    • detectSearch
      Determines whether the translator can look up item metadata. Should return true if it can, and false if it cannot.
    • doSearch
      Performs the actual look up.

See Translator Coding for a detailed description on how these functions can be coded.

Tools

The following tools can make coding Zotero translators easier:

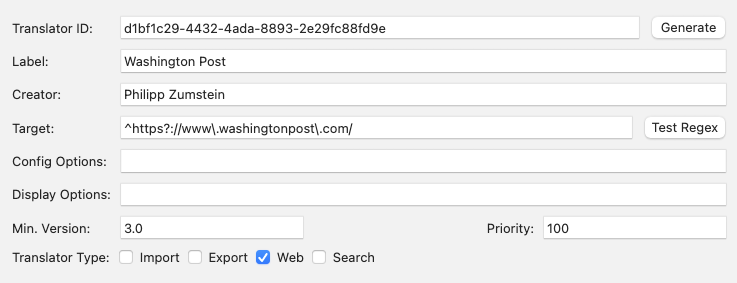

  • Scaffold - Scaffold is a Firefox add-on developed by CHNM to create and modify web translators. Translators can be quickly tested and debugged, and item saving is simulated, so no changes are made to your Zotero library.
  • XPath Tools
    Many web translators rely on XPath to extract information from HTML or XML. XPath construction is made easier by using the XCpath bookmarklet or one of the following Firefox add-ons:

Contributing Translators

If you created or modified a translator and wish to have it added to Zotero, or are looking for support on writing translators, please drop a note on the Zotero development mailing list. It is often best to post the source on a code sharing site like Github, so that it can be accessed easily.

There are two ways to submit translators for inclusion in Zotero:

Submitting for Casual Coders

The easiest way to submit translators is post a link to your code on the Zotero development mailing list (do not paste the code directly into your message), using a code sharing website like http://gist.github.com.

Using gist.github.com

Go to https://gist.github.com/ and copy and paste your translator code into the large text box. Enter the file name of the translator in the “name this file…” text box, and click the “Create Public Gist” button at the bottom of the page. Note that if you are using Scaffold to develop translators, it is not sufficient to just copy the contents of the “Code” pane – you will need to open the translator file, which you can find in the translators directory of your Zotero data directory.

Send a message to the Zotero development mailing list. In your message, ask for your translator to be uploaded to the repository, and provide the link to the Gist (copy the URL from the address bar, which should be in the form of https://gist.github.com/766801. One of the Zotero developers or community members will review the code and add it to the repository. If you don't hear back within a week, feel free to post a reminder to the list.

Submitting for Frequent Contributors

While the process is slightly more complicated, you can also submit translators directly to the Zotero translator repository. Fork the GitHub repository, commit your changes, and create a pull request. You can use your Git client of choice, but for new users we recommend SmartGit, which is free for non-commercial purposes.

Licensing

Please note that contributed translators need to be licensed in a way that allows the Zotero project to distribute them and modify them. We encourage you to license new translators under the GNU Affero General Public License version 3 (or later), which is the license used for Zotero. To do so, just add a license statement to the top of the file. Take a look a recently committed translator, like “Die Zeit.js”, for an example of such a statement.

Recommendations for Translator Authors

While there are no strict coding guidelines for translators, there are some general recommendations:

  1. Web translator detect targets should be selective, to minimize the number of detectWeb functions that are run for each page.
  2. detectWeb, detectImport and detectSearch should be coded to minimize the likelihood of the corresponding doWeb, etc. function failing. Do your minimum required input checking the detect functions – a failing do function will cause user-visible errors.
  3. Make detect functions lightweight– they may be run on pages that a user is not even considering saving. Detect functions should not need to make additional HTTP requests. This obviously runs counter to the preceding point– find a happy medium.
  4. Minimize HTTP requests. More HTTP requests slow down the user, cause undue load on servers, and in general are bad.
  5. Don't leak user data. HTTP requests should in general not be directed to 3rd-party hosts.
  6. Document your code. If there are input data deficiencies and the translator is working around them, document the deficiencies. If there are specific types of pages that a web translator is for, provide example URLs and expected output.
  7. Produce translator tests when possible, covering the basic page types that the translator is designed to support.
